Electroplating

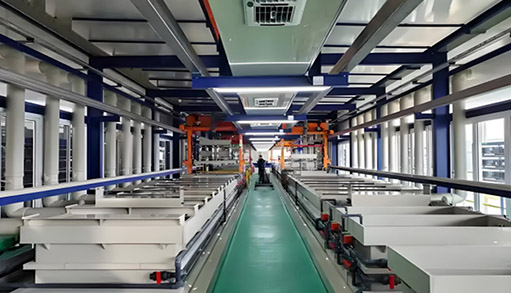

Electroplating scene
Electroplating is a technique in which a metal or alloy is deposited on the surface of a metal or nonmetallic substrate by electrochemical means. The core is to use electrolytic principle, immerse the workpiece as cathode into the electrolyte containing the target metal ions, and reduce the metal ions on the workpiece surface by applying direct current to form a uniform and dense coating. Plating significantly improves aesthetics, corrosion resistance, conductivity, hardness and abrasion resistance of materials.

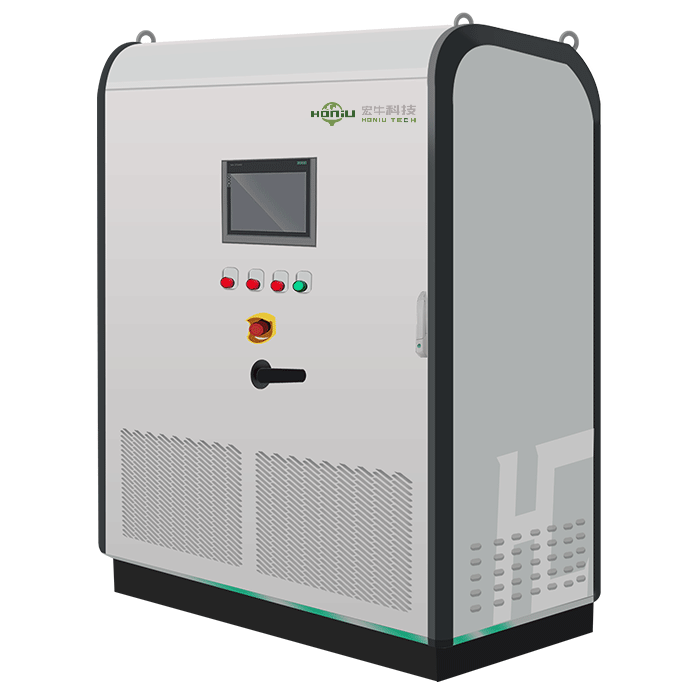

Rectification power supply for electroplating

The product strictly complies with relevant international, national and industrial standards, and has main functions such as voltage stabilization, current limiting, soft start, protection voltage and fault restart, so as to ensure the stability and safety of electroplating process. To meet the requirements of diversified scenes, our company provides remote monitoring module and remote control terminal, supports PLC integrated mobile APP operation, and realizes real-time adjustment of process parameters.
We have silicon controlled series power supply, IGBT series power supply, silicon carbide series power supply and other products to meet the needs of different customers. This product is widely used in hardware electroplating, automotive parts electroplating, electronic component pulse electroplating, aerospace parts anodizing, jewelry decoration electroplating, new energy battery electrode plating, semiconductor packaging electroplating, industrial equipment anti-corrosion coating and other fields, providing customers with efficient and stable electroplating solutions.

Online Consultation
Product Advantages
With advanced control technology and high-quality components, the output is stable and reliable, and the energy consumption is reduced
Output voltage, current, pulse width and other parameters can be adjusted as required to meet complex process requirements
The pulse function can provide intermittent current during electroplating and improve the compactness and finish of the coating
Overload protection, short circuit protection and other safety functions are provided to ensure the safety of equipment and workpiece
The volume of GBT power supply and silicon carbide power supply is only 1/5 of that of silicon controlled power supply, which is applicable to precision scenes such as automobile accessories, new energy battery electrode coating, etc
Covers all scene requirements from low voltage and high current (e.g. hardware electroplating) to high frequency precision (e.g. semiconductor packaging), and supports customized output waveform
The remote monitoring system collects voltage, current and temperature data in real time, supports preventive maintenance and reduces downtime
Customized power supply solutions can be provided according to the specific needs of customers.
Technical Specifications
Model Parameter
Input voltage class AC220V±10%、50HZ/60HZ AC380±10%、50HZ/60HZ
Power factor ≥0.95
Output efficiency ≥94%
Cooling mode Air/water cooled (optional)
Output voltage range 0-12V、0-15V、0-18V、0-24V、0-36V、0-48V(Can be customized)
Mode of adjustment Stepless regulation
Heat dissipation mode Pure air cooling
Ambient temperature -15~40℃
Note: If you need more customized parameters, our professional team will provide you with accurate matching solutions
Application Cases
