Electrolytic metal metal

Application Scenarios Product Display Product Advantages Technical Specifications Application Cases

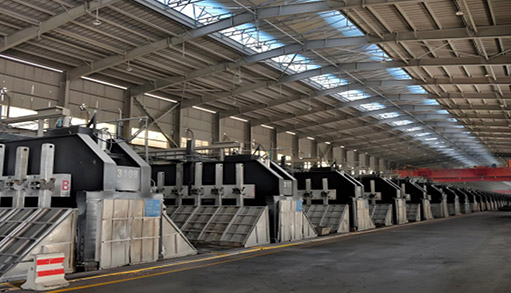

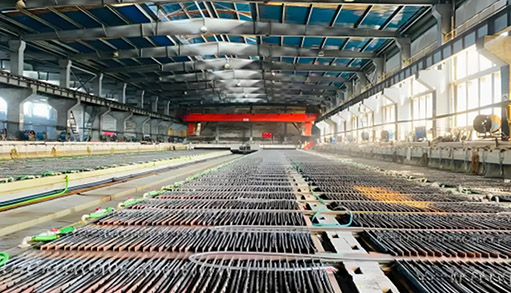

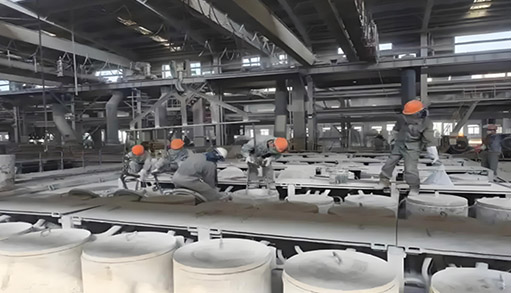

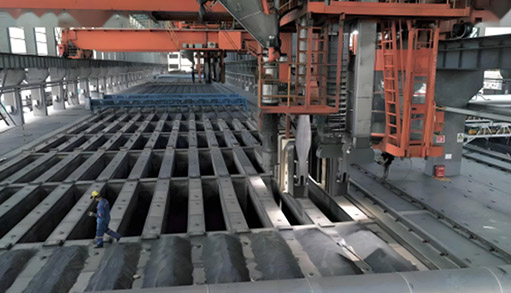

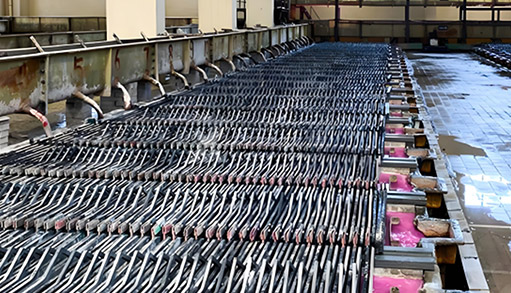

Electrolytic Metal Scenario

Electrolytic metal process is an industrial technology that extracts, purifies or treats metal surface from ore, compound or solution by electrolytic process. Its core is to use DC power supply to drive metal ions in electrolyte to have redox reaction on the electrode, so as to realize metal deposition (such as electroplating) or decomposition (such as electrolytic metallurgy). Electrolytic metal power supply provides continuous large current for equipment, accurately control current density, ensure stable operation, ensure uniformity of coating and improve metal purity.

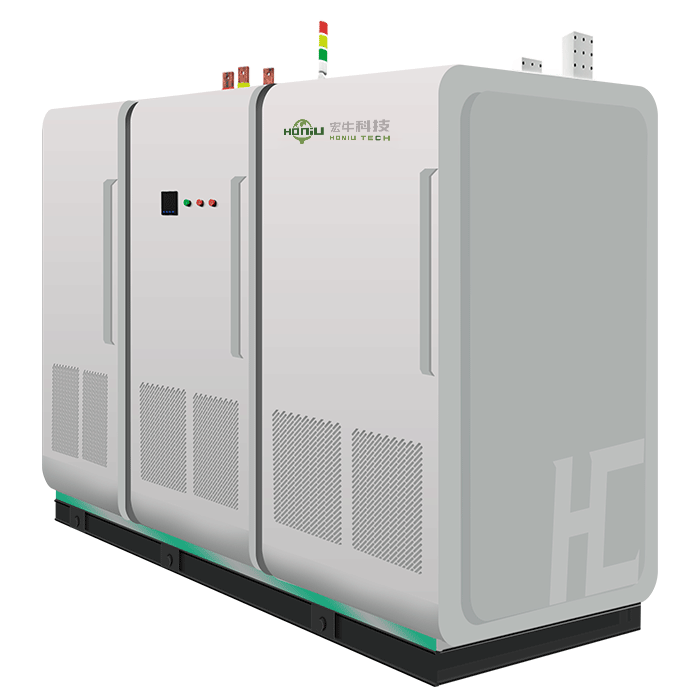

Electrolytic metal rectifier power supply

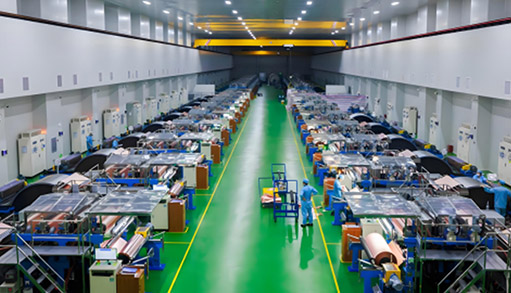

The product strictly complies with IEC61000 international electromagnetic compatibility standard, GB/T 3859.2-2023 General Requirements for Semiconductor Converters and Power Grid Converters, and YS/T612-2023 technical specification for electrolytic power supply of nonferrous metal industry, integrating voltage and current stabilization, soft start, overvoltage/overcurrent/overheating protection, fault self-diagnosis and restart and other core functions. For electrolytic metal scenes, remote HMI intelligent console, multi-channel arc light monitoring device and electrolyte temperature control system are selected to meet the requirements of severe working conditions such as metallurgy and precious metal purification. Our mature technologies include SCR series power supply and IGBT high-frequency resonant power supply. Now, it has been widely used in electrolytic aluminum production, copper electrolytic refining, rare earth metal purification, zinc electrolysis, electrolytic copper foil, magnesium metal electrolysis, manganese dioxide electrolysis and other fields, covering the full scale application from laboratory level to industrial level.

Online Consultation

Product Advantages

Single unit 10kA-100kA output, multiple units in parallel support 10MW customization, meet the capacity requirements of ten thousand tons of copper electrolysis, rare earth purification, etc

The cabinet is resistant to - 25 ° C extreme cold and 60 "C high temperature, and the service life of the equipment is extended for more than 20 years

Full-digital display+sound-light alarm system, automatic push of fault code, 50% improvement of maintenance efficiency

Matching air/water cooling scheme as required, suitable for - 45 ° C~50 ° C environment, providing customized service.

Technical Specifications

Model	Parameter
Input voltage class	Low power: three-phase 380VAC/480VAC ± 10% High power: customized high voltage (e.g. 110KV/330KV, applicable to industrial power grid)
Frequency range	45~65Hz adaptive
Output current range	0~20000A(Continuously adjustable)
Power supply efficiency	≥92%(Full load working condition)
Power factor	≥0.95(Full load working condition)
Harmonics ITHD	≤5%
Operating temperature	-40°C~+50°C(Wide temperature range adaptation)
Active Protection	Phase loss, overcurrent, overheating, short circuit, undervoltage and overvoltage
